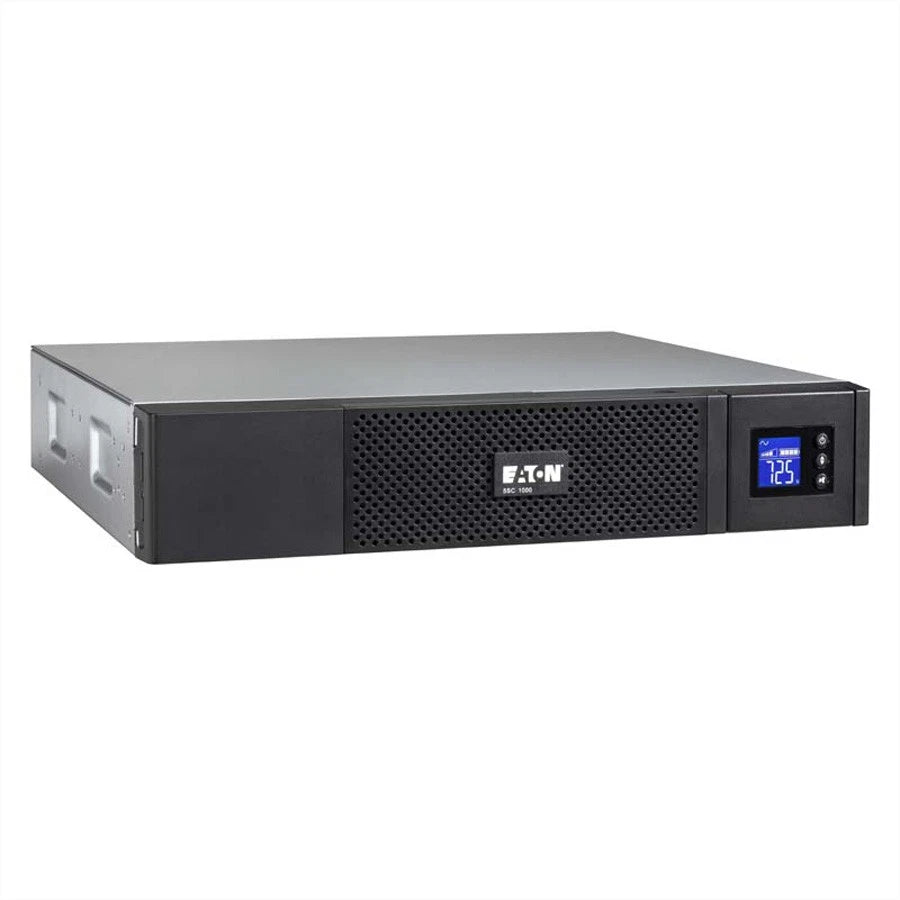

Eaton 5SC1500IR 1500VA Line-Interactive Rack/Tower UPS

Eaton 5SC1500IR – 1500VA Line-Interactive Rack/Tower UPS

The Eaton 5SC1500IR delivers reliable power protection for servers, networking equipment, and other critical IT infrastructure. With a 1500VA / 1050W capacity and line-interactive topology, it actively regulates voltage fluctuations without switching to battery — extending battery life and ensuring consistent power delivery.

Key Features

• 1500VA / 1050W capacity for business-critical equipment
• Line-interactive topology with automatic voltage regulation (AVR) — handles brownouts and overvoltages without draining the battery
• 2U rack/tower convertible form factor — flexible deployment in rack cabinets or as a tower unit
• 8 x IEC C13 outlets for connected equipment
• LCD display showing load, battery charge, input/output voltage, and estimated runtime
• USB and RS-232 communication ports for UPS management and graceful shutdown
• Hot-swappable batteries — replace batteries without powering down connected equipment
• Eaton Intelligent Power Manager (IPM) compatible for centralised monitoring
• Energy Star certified — high efficiency operation reduces running costs

Specifications

• Topology: Line-Interactive
• Capacity: 1500VA / 1050W
• Input Voltage: 230V AC
• Output Voltage: 230V AC (simulated sine wave)
• Frequency: 50/60 Hz (auto-sensing)
• Outlets: 8 x IEC C13
• Form Factor: 2U Rack/Tower
• Communication: USB, RS-232
• Battery Type: Sealed lead-acid (hot-swappable)
• Typical Backup Time: ~5 min at full load, ~11 min at half load
• Dimensions (rack): 88 x 432 x 390 mm (H x W x D)
• Weight: ~12.5 kg

Ideal for small to medium business server rooms, network closets, and edge computing environments where uptime is non-negotiable.
