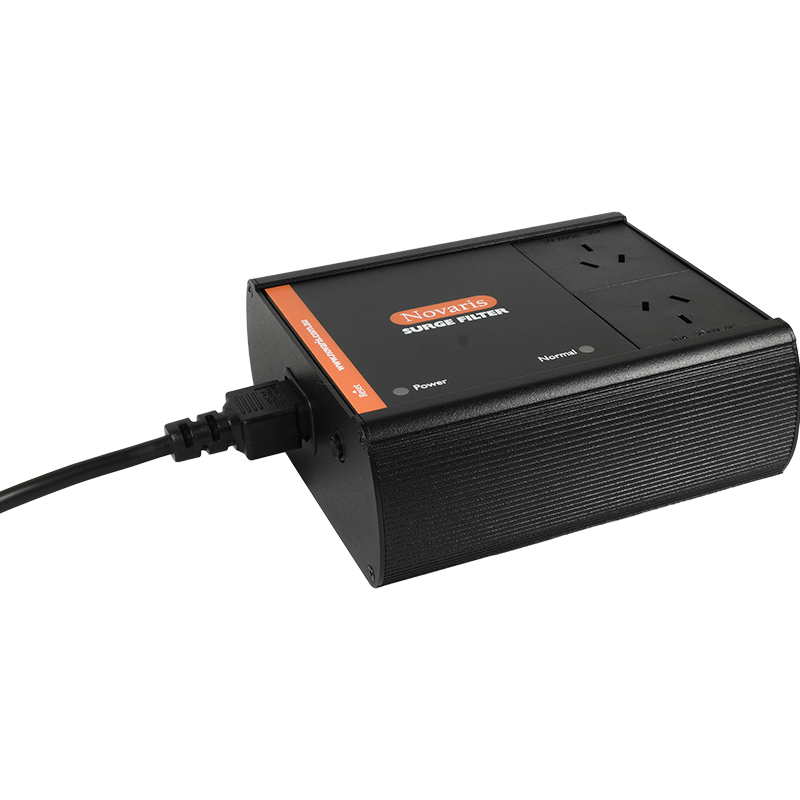

Novaris PP10A2-50 Plug-in Surge Filter, 2x Power Outlets

Product Code: PP10A2-50
Brand: Novaris
Category: Power Protection / Surge Filters

🔧 Overview

The Novaris PP10A2-50 is a premium plug-in surge filter designed to protect sensitive and critical electronic equipment from voltage spikes and surges. Ideal for office, industrial, and home environments, it plugs directly into a standard mains outlet.

⚙️ Specifications

• Connection Type: Series IEC/AS/NZS
• Protection Level: Type 2
• Phases: Single-phase
• Nominal Voltage: 230V AC
• Max Continuous Voltage: 275V AC
• Max Load Current: 10A
• Max Discharge Current: 50kA (L-N)
• Nominal Discharge Current: 20kA (L-N, N-PE)
• Voltage Protection Level @ 3kA (8/20µs): <600V
• Alarm Function: No
• Indicators: LED Power and Status
• Enclosure: Aluminium, black powdercoat
• Mounting: Free-standing
• Dimensions: 154mm (W) × 60mm (H) × 137mm (D)
• Weight: 1.3kg
• IP Rating: IP20
• Operating Temperature: -40°C to +70°C
• Humidity Range: 5% to 95%

✅ Features

• Simple plug-in installation
• Multi-line protection (L-N, L-PE, N-PE)
• Instantaneous response time (<25ns)
• Durable metal enclosure
• Complies with AS/NZS 3112 standards

📦 Applications

• Computers and networking equipment
• Audio/visual systems
• Industrial control systems
• Medical devices
