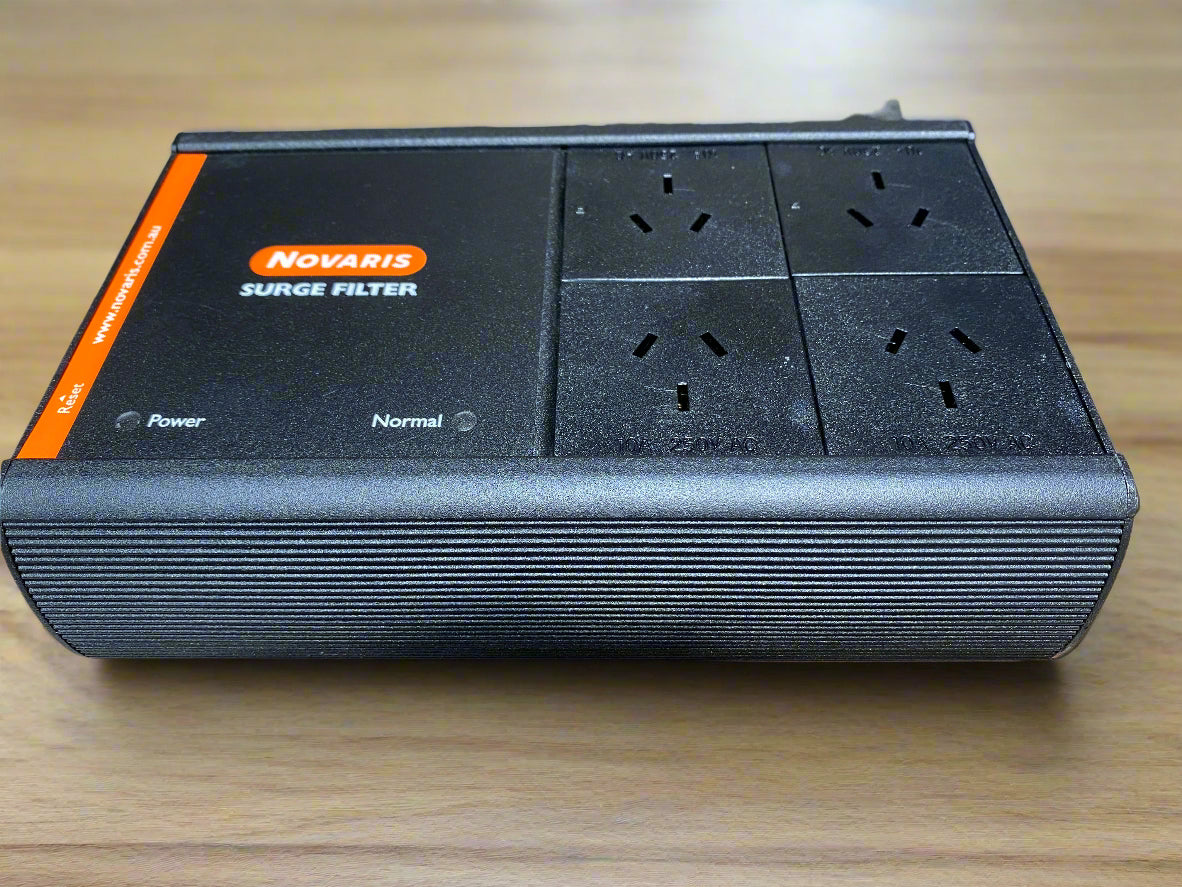

Novaris PP10A4-50 Plug-In Surge Filter | 50kA | 275VAC | 4 Outlets | Industrial Grade

Protect your critical equipment with the Novaris PP10A4-50, a high-performance plug-in surge filter engineered for industrial environments. With a 50kA surge rating, multi-mode protection, and compliance with international standards, this compact yet powerful device ensures your systems stay safe from damaging voltage spikes.

🔧 Key Features

• Surge Capacity: 50kA (8/20μs)
• Voltage Rating: 275VAC (L-N, N-PE, L-PE)
• Modes of Protection: All-mode (L-N, L-PE, N-PE)
• Outlets: 4 x 10A Australian Type I
• Mounting: Free-standing (optional wall mount)
• Response Time: Instantaneous
• Voltage Protection Level: <600V @ 3kA
• Standards Compliance:
  • IEC 61643-11
  • AS/NZS 1768
  • IEEE C62.41
  • IEC 1000-4-5
• Operating Temperature: -40°C to +70°C
• Humidity Tolerance: 0–90% (non-condensing)
• Power Consumption: <1W
• Earth Leakage Current: <500μA
• Attenuation: -3dB @ 900Hz, -60dB @ 100kHz
• Display: LED power and status indicators

📦 What's Included

• Novaris PP10A4-50 Surge Filter
• User Manual
• Warranty Information

📐 Dimensions & Weight

• Width: 205 mm
• Height: 140 mm
• Depth: 60 mm
• Weight: 1.3 kg
• IP Rating: IP20 (Indoor use)

💼 Ideal For

• Industrial control systems
• Sensitive electronic equipment
• Commercial power protection
• Data centres and server rooms
